| CMSST-XX-XX系列参数表 | |||||||||
| 型号 | 速比 | 输入 2000r/min 额定转矩 |
启动停止 时允许的 峰值转矩 |
平均负载 转矩的容 许最大值 |
瞬间 容许 最大 转矩 |
容许 最高 输入 转速 |
容许 平均 输入 转速 |
背隙 | 设计 寿命 |
| / | / | Nm | Nm | Nm | Nm | r/min | r/min | Arcsec | Hour |
| 11 | 30 | 2 | 4.1 | 3.1 | 8 | 5000 | 3000 | ≤30 | 9000 |
| 50 | 3.1 | 7.8 | 5 | 15 | |||||
| 100 | 4.5 | 10 | 8.2 | 22 | ≤25 | ||||
| 14 | 30 | 3.1 | 6 | 4.5 | 12 | 5000 | 3000 | ≤30 | 9000 |
| 50 | 3.8 | 12 | 5.5 | 25 | |||||
| 100 | 6.6 | 18 | 8.5 | 38 | ≤25 | ||||
| 17 | 30 | 6.5 | 12 | 9.5 | 24 | 5000 | 3000 | ≤30 | 9000 |
| 50 | 12 | 25 | 18 | 50 | |||||
| 100 | 16 | 37 | 28 | 71 | ≤25 | ||||
| 20 | 30 | 11 | 20 | 14 | 32 | 5000 | 3000 | ≤30 | 9000 |
| 50 | 17 | 41 | 24 | 68 | |||||
| 100 | 28 | 60 | 34 | 98 | ≤25 | ||||

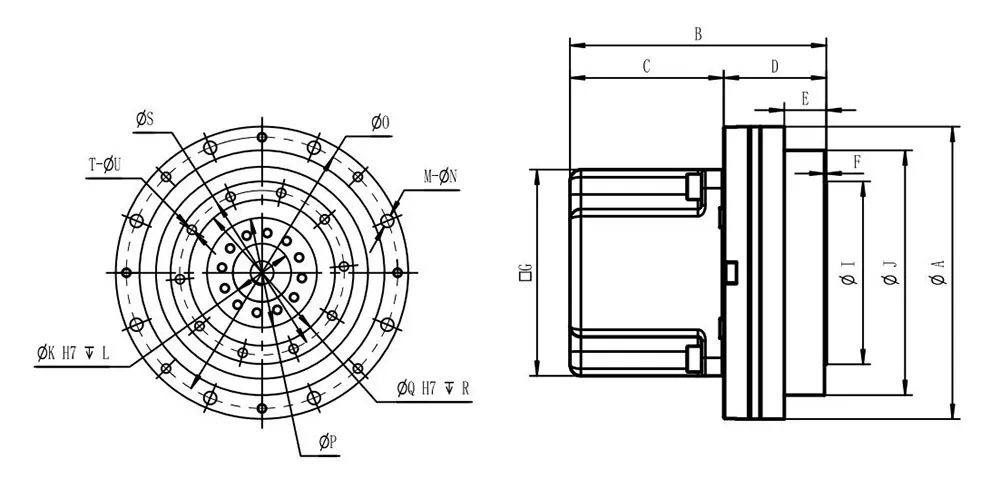

| CMSST-XX-XX系列尺寸表(步进电机) | |||
| 型号 符号 | 11 | 14 | 17 |
| ØA | 55 | 69 | 80 |
| B | 50.1 | 60.05 | 70.1 |
| C | 27.5 | 34 | 42 |
| D | 22.6 | 26.05 | 28.1 |
| E | 10 | 10.5 | 11.5 |
| F | 1 | 1 | 0.5 |
| ØG | 35.3 | 42.3 | 56.4 |
| Ø1 | 34 | 42 | 50 |
| ØJ | 45 | 56 | 67 |
| ØK H7 | 9 | 13 | 16 |
| L | 4 | 5 | 6 |
| M | 6 | 6 | 8 |
| ØN | 2.6 | 3.5 | 3.5 |
| 0 | 50 | 63 | 74.2 |
| ØP | 18 | 23 | 30 |
| ØQ | 24 | 30 | 40 |
| R | 2 | 2.9 | 3 |
| ØS | 29 | 35 | 45 |
| T | 8 | 8 | 10 |
| ØU | M2.5×4 | M3×5 | M3×6 |
